Hydraulic Cylinder Manufacturing
Made in our own factory, so we are not limited to what is on a shelf. From one-off custom pieces to production runs for equipment builders.
Manufacturing
We manufacture hydraulic cylinders in our own factory. That means we are not limited to what is on a shelf: a one-off custom piece or a production run for an equipment builder.
What we need from you
- A technical drawing
- A sample part
- Bore, stroke and mounting type
Our hydraulic cylinders and cylinder parts carry a CE Declaration of Conformity, and production runs under our ISO 9001 quality management system.

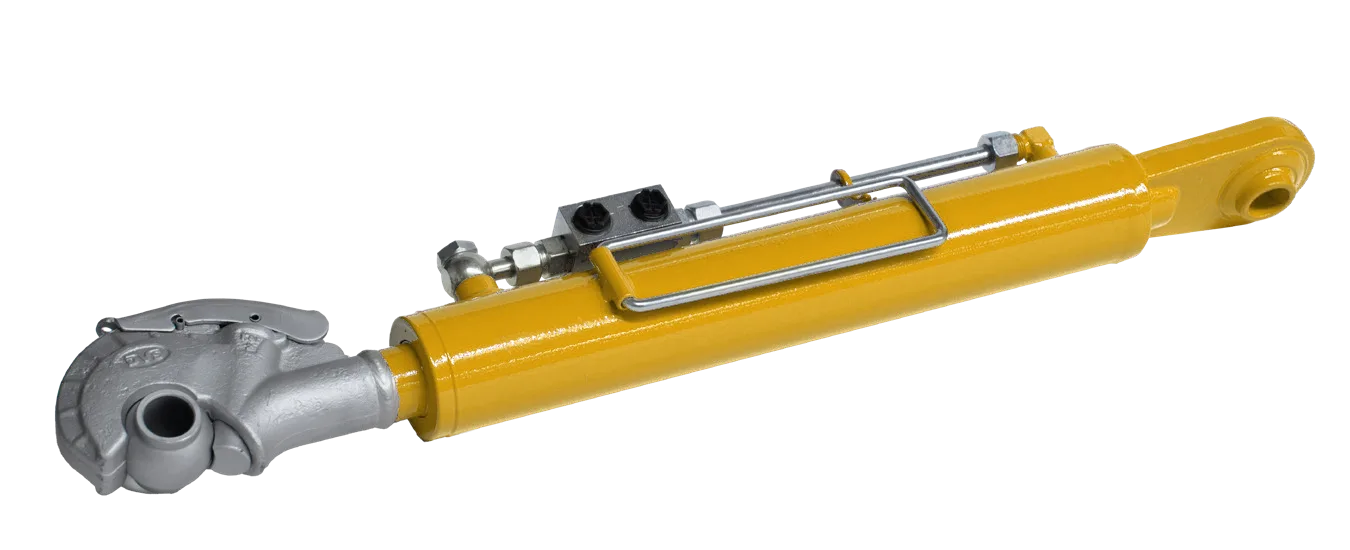

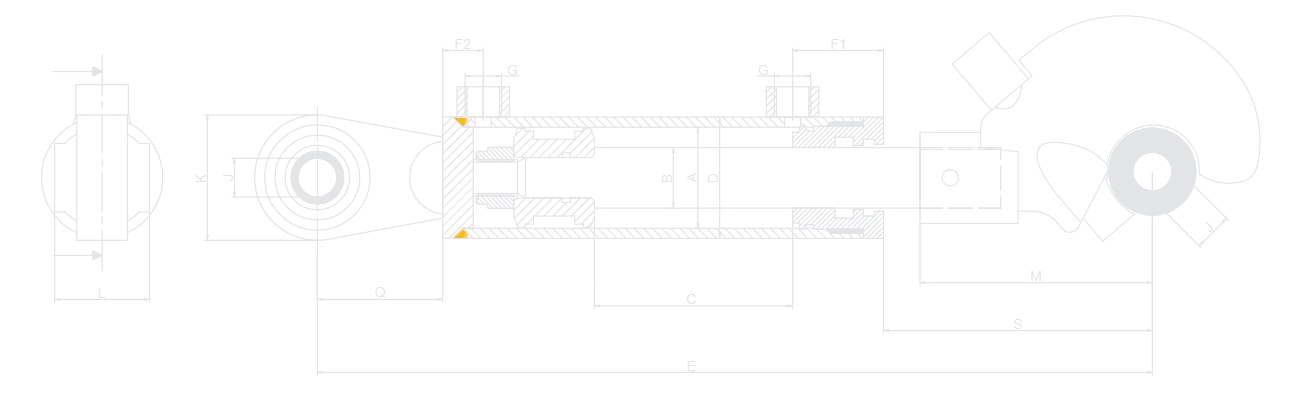

ORKSEM hydraulic cylinders
- ØA
- Cylinder bore (mm)
- ØB
- Rod diameter (mm)
- C
- Stroke (mm)
- ØD
- Barrel outer diameter (mm)
- E
- Retracted length (mm)
- F1, F2
- Port distances (mm)
- G
- Port size
- ØJ
- Ball joint diameter (mm)
- K, L, Q, M, S
- Mounting dimensions (mm)
| Stock code | Product (ØA×ØD×ØB×E×C) | ØA | ØB | C | ØD | E | F1 | F2 | G | ØJ | K | L | Q | M | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ORK-HS-9050-800 | 90×105×50×1215×800 | 90 | 50 | 800 | 105 | 1215 | 65 | 27 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 178 |
| ORK-HS-9050-1000 | 90×105×50×1415×1000 | 90 | 50 | 1000 | 105 | 1415 | 65 | 27 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 178 |
| ORK-HS-10050-200 | 100×115×50×630×200 | 100 | 50 | 200 | 115 | 630 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10050-250 | 100×115×50×680×250 | 100 | 50 | 250 | 115 | 680 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10050-300 | 100×115×50×730×300 | 100 | 50 | 300 | 115 | 730 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10050-400 | 100×115×50×830×400 | 100 | 50 | 400 | 115 | 830 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10050-500 | 100×115×50×930×500 | 100 | 50 | 500 | 115 | 930 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10050-600 | 100×115×50×1030×600 | 100 | 50 | 600 | 115 | 1030 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10050-800 | 100×115×50×1230×800 | 100 | 50 | 800 | 115 | 1230 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10050-1000 | 100×115×50×1430×1000 | 100 | 50 | 1000 | 115 | 1430 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10060-300 | 100×115×60×730×300 | 100 | 60 | 300 | 115 | 730 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10060-400 | 100×115×60×830×400 | 100 | 60 | 400 | 115 | 830 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10060-500 | 100×115×60×930×500 | 100 | 60 | 500 | 115 | 930 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10060-600 | 100×115×60×1030×600 | 100 | 60 | 600 | 115 | 1030 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10060-800 | 100×115×60×1230×800 | 100 | 60 | 800 | 115 | 1230 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
| ORK-HS-10060-1000 | 100×115×60×1430×1000 | 100 | 60 | 1000 | 115 | 1430 | 80 | 31 | 1/2" | 40,2 - 32,4 | 105 | 75 | 85 | 155 | 180 |
All dimensions in mm. Sizes not listed are made to order from your drawing or sample.
Not on the shelf?
We make it.
Because we make cylinders ourselves, we are not limited to what is on a shelf: one-off custom production or series runs for equipment builders. Send us one of these:
- Technical drawing
Send your drawing and we produce it to size.
- Sample part
Send the existing cylinder as a sample; we take its dimensions and reproduce it.
- Bore, stroke & mounting
Just tell us the bore, stroke and mounting type.
- Series production
Repeatable-quality production runs for equipment builders.
CNC Precision Machining
CNC precision machining in our own facility, to your drawing or sample part.
View details
Gear Manufacturing
Series and custom gear manufacturing: spur, helical and bevel gears, racks and splined shafts — to your drawing or sample.
View details
Moulds & Models
Plastic injection moulds, progressive dies, metal forging dies and aluminium die-casting moulds.
View detailsGet a Quote
Send a drawing, sample or dimensions — we review manufacturability and prepare a quote.
- Phone+90 532 495 35 58
- Call or text+90 530 140 16 34
- WhatsAppMessage us →
- Infoinfo@orksemengineering.com
- Salessales@orksemengineering.com.tr
- Muhasebemuhasebe@orksemengineering.com.tr
Osmangazi Mah. Vefa Sk. No: 13-15, TURKEY
Mon – Sat · 9:00 – 18:00 (GMT+3)
